Introducing Reusable Setting Views #197

jarolrod · 2022-12-07T06:00:18Z

This makes the settings views independent from the onboarding views and refactors the definition of the settings views so that these now independent settings view pages can be reused anywhere and as many times as we need to; they are not delegated to only be used within the onboarding wizard.

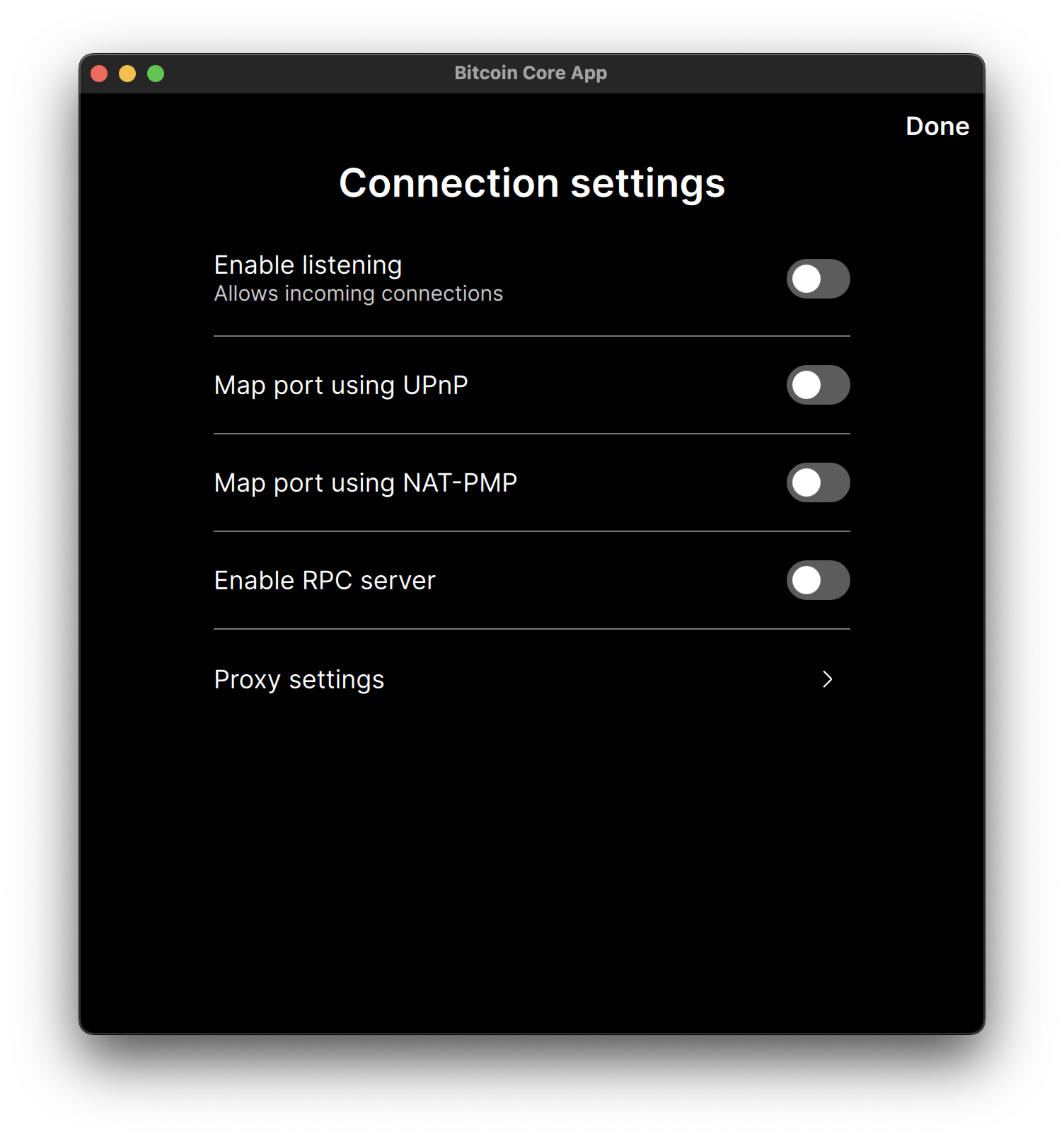

Desktop

Master

master-1	master-2	master-3	master-4

PR

pr-1	pr-2	pr-3	pr-4

hebasto · 2022-12-08T11:52:47Z

based on #192

#192 has just been merged. Rebase?

johnny9

ACK 3e62f27

Much clearer definition of the Settings pages and much better file naming when looking for a page with specific context. One minor quirk with the naming of the page and the selection component that can be thought about and addressed later if a solution is found.

Views render as expected and no qml warnings when run.

johnny9 · 2022-12-08T15:26:49Z

src/qml/pages/settings/SettingsStorage.qml

+    detailActive: true
+    detailItem: ColumnLayout {
+        spacing: 0
+        StorageSettings {


The naming here ends up being a bit funny as its nearly identical to the parent component's name. Maybe append to the component name something that signifies that it is just the selection piece or use "import as" when bringing in the component.

Just noticed the naming here are the same words in reversed order :D, can anyone suggest better naming here?

@GBKS: SettingsStorage.qml represents the actualy page view for the Settings that are related to Storage. And StorageSettings is a component we place inside of SettingsStorage.qml that represents the table of advanced settings which are related to Storage.

since this component is already under a "settings" folder. Maybe StorageSettingsPage is better name for the component and then something equivalent for the other components since it is a "Page" that holds the "StorageSettings"

johnny9 · 2022-12-08T15:35:59Z

src/qml/pages/onboarding/onboarding01.qml

-        Loader {
-            source:"onboarding01a.qml"
+        InformationPage {
+            Layout.fillWidth: true


SwipeViews don't handle Layout properties. Think this can be removed.

thanks for spotting these, it's a bad habit of mine to place this until the view is working correctly. Since you've already opened a PR to address them, i've left this as is.

johnny9

Noticed some Layout properties that likely are unused. Might be best to address in a separate PR.

Edit: Starting PR #201

johnny9 · 2022-12-08T16:09:41Z

src/qml/pages/onboarding/onboarding02.qml

-Page {
-    background: null
-    clip: true
+InformationPage {
    Layout.fillWidth: true


This Layout property can be removed

johnny9 · 2022-12-08T16:09:53Z

src/qml/pages/onboarding/onboarding03.qml

-Page {
-    background: null
-    clip: true
+InformationPage {
    Layout.fillWidth: true


johnny9 · 2022-12-08T16:10:05Z

src/qml/pages/onboarding/onboarding04.qml

@@ -9,31 +9,26 @@ import org.bitcoincore.qt 1.0
 import "../../controls"
 import "../../components"

-Page {
-    background: null
+InformationPage {
    Layout.fillWidth: true


johnny9 · 2022-12-08T16:10:16Z

src/qml/pages/onboarding/onboarding05.qml

-        Loader {
-            source:"onboarding05a.qml"
+        InformationPage {
+            Layout.fillWidth: true


johnny9 · 2022-12-08T16:10:33Z

src/qml/pages/onboarding/onboarding06.qml

-        Loader {
-            source:"onboarding06a.qml"
+        InformationPage {
+            Layout.fillWidth: true


johnny9 · 2022-12-08T16:11:55Z

src/qml/pages/settings/SettingsAbout.qml

+import "../../components"
+
+InformationPage {
+    Layout.fillWidth: true


johnny9 · 2022-12-08T16:12:05Z

src/qml/pages/settings/SettingsConnection.qml

+
+InformationPage {
+    background: null
+    Layout.fillWidth: true


johnny9 · 2022-12-08T16:12:14Z

src/qml/pages/settings/SettingsDeveloper.qml

+import "../../components"
+
+InformationPage {
+    Layout.fillWidth: true


johnny9 · 2022-12-08T16:12:23Z

src/qml/pages/settings/SettingsStorage.qml

+import "../../components"
+
+InformationPage {
+    Layout.fillWidth: true


This extracts out the navbar element defintions from the settings page itself, and moves it to where the page is instantiated. This allows the settings views to be reused anywhere else we want to use them, and are now no longer limited to being used within the onboarding wizard.

jarolrod · 2022-12-08T17:18:12Z

Updated from 3e62f27 to 30db8cc

changes: rebased over master

hebasto

ACK 30db8cc, I have reviewed the code and it looks OK, I agree it can be merged.

Github-Pull: bitcoin-core#197 Rebased-From: 5f11241

Github-Pull: bitcoin-core#197 Rebased-From: 86170be

This extracts out the navbar element defintions from the settings page itself, and moves it to where the page is instantiated. This allows the settings views to be reused anywhere else we want to use them, and are now no longer limited to being used within the onboarding wizard. Github-Pull: bitcoin-core#197 Rebased-From: 30db8cc

Github-Pull: bitcoin-core#197 Rebased-From: 5f11241

Github-Pull: bitcoin-core#197 Rebased-From: 86170be

This extracts out the navbar element defintions from the settings page itself, and moves it to where the page is instantiated. This allows the settings views to be reused anywhere else we want to use them, and are now no longer limited to being used within the onboarding wizard. Github-Pull: bitcoin-core#197 Rebased-From: 30db8cc

Github-Pull: bitcoin-core#197 Rebased-From: 5f11241

Github-Pull: bitcoin-core#197 Rebased-From: 86170be

This extracts out the navbar element defintions from the settings page itself, and moves it to where the page is instantiated. This allows the settings views to be reused anywhere else we want to use them, and are now no longer limited to being used within the onboarding wizard. Github-Pull: bitcoin-core#197 Rebased-From: 30db8cc
