Open api: If a path parameter is documented, the engine add a query parameter instead

[SrMouraSilva]

Description

In open api, the engine assumes that the doc is about a query parameter, not a path parameter

acceptance_helper.rb

require 'rails_helper'
require 'rspec_api_documentation'
require 'rspec_api_documentation/dsl'

# https://github.com/zipmark/rspec_api_documentation#configuration-options
RspecApiDocumentation.configure do |config|
  config.docs_dir = Rails.root.join("app", "assets", "json")
  config.configurations_dir = Rails.root.join("spec")

  config.format = :open_api

  config.request_body_formatter = :json

  config.request_headers_to_include = ['Accept']
  config.response_headers_to_include = ['Content-Type', 'X-STI-Api-Version', 'X-STI-Api-Status']

  config.io_docs_protocol = "https"
end

componente_curricular_spec.rb

resource "Componentes curriculares" do
  header 'Accept', 'application/vnd.sti.api; version=V20181201'
  header 'Content-Type', 'application/json'

  get '/componentes-curriculares/:codigo' do
    route_summary "Obter dados de um componente curricular"

    parameter :codigo, 'Código do Componente curricular', type: :string, required: true, with_example: true

    context '200' do
      let(:codigo) { 'RM0001' }

      example_request 'Ok' do
        expect(status).to be 200
        expect(response_status).to be 200

        expect(response_body).not_to be_empty
      end
    end
end

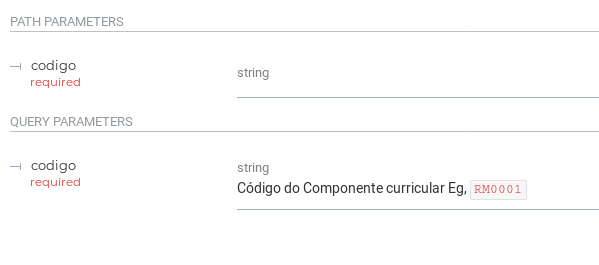

Output

"parameters": [
          {
            "name": "codigo",
            "in": "path",
            "description": "",
            "required": true,
            "type": "string"
          },
          {
            "name": "codigo",
            "in": "query",
            "description": "Código do Componente curricular\nEg, `RM0001`",
            "required": true,
            "type": "string"
          }
        ],

[SrMouraSilva]

Some details

If I specify that the parameter is present in: path

parameter :codigo, 'Código do Componente curricular', type: :string,
  in: :path, with_example: true, required: true

then duplicate the path parameter

"parameters": [
  {
    "name": "codigo",
    "in": "path",
    "description": "Código do Componente curricular\nEg, `RM0001`",
    "required": true,
    "type": "string"
  },
  {
    "name": "codigo",
    "in": "path",
    "description": "",
    "required": true,
    "type": "string"
  }
],

[SrMouraSilva]

Duplicated
#393
