Deduplicate locations in stat_align()

[teunbrand]

This PR aims to fix #5176.

The cause of the issue was that position_stack() stacked values from the same group at the same x-location because there were duplicated entries in the unique_loc computed parameter. This PR deduplicates the unique_loc so that this stacking bug doesn't occur.

Reprex from the issue without/with this PR:

library('tidyr')
library('tibble')
library('ggplot2')
library('dplyr')

grid_values <- 2^(-3:3)

strange_values <- c(-1.90819287770871e-06, -1.68820727726686e-20, 1.90820561104585e-06,
                    -2.03934646947346e-11, -2.66724989539021e-44, 1.82186185543446e-11,
                    -3.08642000845794e-14, -2.84079624478981e-68, 3.8017746773927e-20,
                    -1.55431223447522e-14, -2.12106623568441e-87, -7.04031177308046e-34,
                    1.99840144432528e-15, 6.92960775272386e-94, -2.17911262386235e-50,
                    6.43929354282591e-15, 1.60655203590779e-101, -2.4149683145618e-74,
                    4.2188474935756e-15, -1.63364987668272e-101, -8.43744249369279e-100,
                    -1.9234795292089e-06, -1.40915667489693e-20, 1.92348291032148e-06,
                    -7.86031240096463e-11, 5.94869638827445e-40, 1.70218514362265e-11,
                    -6.21724893790088e-15, -5.32110095875999e-63, 3.9895815730536e-20,
                    2.39808173319034e-14, -9.91626723546227e-86, -2.47375723122866e-33,
                    -1.77635683940025e-15, 8.7576689576463e-93, -2.1712899716615e-50,
                    9.54791801177635e-15, 2.7961387551394e-101, -2.62250706570328e-74,
                    -6.43929354282591e-15, -5.36337882495689e-101, -1.65540646490924e-99,
                    -1.95935441282824e-06, -4.13414429145914e-22, 1.9595249500527e-06,
                    -1.99651406518342e-11, 4.01993294485079e-37, 1.71444629227149e-11,
                    2.31215047108435e-12, -5.46064224913782e-66, 6.44847728373308e-20,
                    5.40456568387526e-13, 5.30352631285166e-83, 3.81832474229875e-33,
                    -1.80966353013901e-14, -9.72418279929888e-94, -2.08007912888974e-51,
                    -1.33226762955019e-14, 3.23934484578975e-100, -2.61033780134937e-74,
                    6.88338275267597e-15, -1.29762567303952e-99, -2.07383582042798e-98,
                    -2.01803061317118e-06, 3.3691909504469e-20, 2.01799435665222e-06,
                    -1.83731918568242e-11, 7.21526941571507e-42, 1.72812031885596e-11,
                    1.40298883621881e-11, 2.61529894687986e-38, 2.597261897857e-20,
                    3.95239396766556e-14, -1.83777217239233e-53, 1.74710015191643e-33,
                    -2.1316282072803e-14, 3.26611237858842e-68, -1.19804995812909e-51,
                    -1.58761892521397e-14, 6.58410560104933e-90, -2.50682775406401e-74,
                    2.46469511466785e-14, -1.08556164510476e-96, -8.68448004693709e-96,
                    -2.14979959756167e-06, 4.65632478870001e-17, 2.14994451996064e-06,
                    -2.15127915481617e-11, -5.03897310277035e-29, 2.37451670641299e-11,
                    -7.30294713591206e-11, -6.74709311307118e-38, 4.03149402823541e-20,
                    8.21565038222616e-14, 4.6575341905728e-50, -1.71156811032874e-33,
                    -1.32116539930394e-14, 9.41355218246985e-67, -5.35957793195957e-51,
                    7.99360577730113e-15, 8.43929875779189e-89, -2.9418326640071e-74,
                    1.48769885299771e-14, -2.81028796325013e-90, -1.12411483527064e-89,
                    -2.42728809329851e-06, -8.05503632048299e-18, 2.42718074969143e-06,
                    5.7643223527748e-11, -5.67417009881705e-30, 2.18227445666839e-11,
                    4.88498130835069e-15, 5.74369923731793e-37, 5.93253926283155e-20,
                    -5.36681810103801e-13, 7.68115012003888e-48, 2.12048592220925e-31,
                    1.43107747874183e-12, -5.9458568180203e-64, 3.32402936140172e-48,
                    -8.88178419700125e-16, -1.75086766216852e-75, -3.32876019974183e-73,
                    6.43929354282591e-15, -1.00992378651113e-74, -2.01984753722959e-74,
                    -2.90572647954068e-06, -7.77642264438329e-10, 2.90649964611508e-06,
                    9.09130548620851e-11, -3.52178085798882e-12, -8.73905452509179e-11,
                    -1.03369389016228e-05, 6.07960561736676e-07, 9.72897833978829e-06,
                    -0.00081769791399311, 9.032308610189e-05, 0.000727374827890998,
                    -0.0011992740379827, 0.000238928931343064, 0.000960345106639307,
                    -0.00123663646030969, 0.000411530217922524, 0.000825106242386583,
                    -0.00124466009860591, 0.000621942028670438, 0.000622718069935415
)
my_tib <- expand_grid(beta = grid_values, lambda = grid_values, name = c('S', 'I', 'R'))
my_tib$value <- 0
my_tib$value[my_tib$name == 'I'] <- 1
my_tib$value_strange <- my_tib$value + strange_values

ggplot(my_tib, aes(x = beta, y = value_strange, fill = name)) +
  geom_area() +
  facet_grid(cols = vars(lambda)) +
  scale_x_continuous(trans = 'log10')

devtools::load_all("~/packages/ggplot2")
#> ℹ Loading ggplot2

ggplot(my_tib, aes(x = beta, y = value_strange, fill = name)) +
  geom_area() +
  facet_grid(cols = vars(lambda)) +
  scale_x_continuous(trans = 'log10')

^{Created on 2023-02-04 with reprex v2.0.2}

[yutannihilation]

Hmm, the problem is that, when adjust is too small to unique_loc, unique_loc ± adjust can be equal to unique_loc, right? I'm not fully sure, but I'm afraid we need the same number of unique_loc anyway to handle the case when the data has "cliff"s.

[teunbrand]

Hmm, the problem is that, when adjust is too small to unique_loc, unique_loc ± adjust can be equal to unique_loc, right?

Yes that is what I think is happening, though that should only happen in rare cases that I can't recreate outside the example. I tried to test what would happen to cliffs, but they appear to be unaffected in normal circumstances where unique_loc +/- adjust doesn't contain duplicates.

devtools::load_all("~/packages/ggplot2")
#> ℹ Loading ggplot2

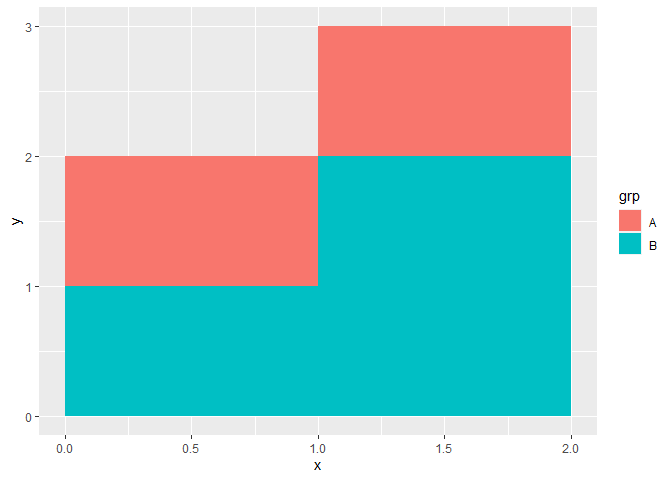

df <- data.frame(x = c(0, 1, 1, 2, 0, 1, 2),
                 y = c(1, 1, 2, 2, 1, 1, 1),
                 grp = rep(c("B", "A"), c(4, 3)))

ggplot(df, aes(x, y, fill = grp)) +
  geom_area()

^{Created on 2023-02-05 with reprex v2.0.2}

(I'm sorry for accidentally flagging you for review!)

[teunbrand]

Closing this in favour of #5239
