java.lang.Record equality is much slower than HotSpot #12359
Description
TL;DR: JDK16 records use invokedynamic for equality checks and that behaves very badly on OpenJ9 (eg. compared to manually written equality checks).
Record classes introduced in JDK16 seem to be quite a bit slower on OpenJ9 than Hotspot. I put together a simple JMH benchmark to compare the performance of equals on Java records to equals on Scala case classes. Looking at the bytecode the interesting difference is:
- Java records use
invokedynamiconjava.lang.runtime.ObjectMethods - Scala case classes generate bytecode that manually checks each field for equality
Here's the relevant snippets from javap -p -v:
manually written equality (Scala case class)
public boolean equals(java.lang.Object);
descriptor: (Ljava/lang/Object;)Z
flags: ACC_PUBLIC
Code:
stack=4, locals=6, args_size=2
0: aload_0
1: aload_1
2: if_acmpeq 102
5: aload_1
6: astore_3
7: aload_3
8: instanceof #2 // class records/SmallScala
11: ifeq 19
14: iconst_1
15: istore_2
16: goto 27
19: goto 22
22: iconst_0
23: istore_2
24: goto 27
27: iload_2
28: ifeq 106
31: aload_1
32: checkcast #2 // class records/SmallScala
35: astore 4
37: aload_0
38: invokevirtual #62 // Method i:()I
41: aload 4
43: invokevirtual #62 // Method i:()I
46: if_icmpne 98
49: aload_0
50: invokevirtual #65 // Method s:()Ljava/lang/String;
53: aload 4
55: invokevirtual #65 // Method s:()Ljava/lang/String;
58: astore 5
60: dup
61: ifnonnull 73
64: pop
65: aload 5
67: ifnull 81
70: goto 98
73: aload 5
75: invokevirtual #137 // Method java/lang/Object.equals:(Ljava/lang/Object;)Z
78: ifeq 98
81: aload_0
82: invokevirtual #68 // Method l:()J
85: aload 4
87: invokevirtual #68 // Method l:()J
90: lcmp
91: ifne 98
94: iconst_1
95: goto 99
98: iconst_0
99: ifeq 106
102: iconst_1
103: goto 107
106: iconst_0
107: ireturn
invokedynamic equality (Java record)
public final boolean equals(java.lang.Object);
descriptor: (Ljava/lang/Object;)Z
flags: (0x0011) ACC_PUBLIC, ACC_FINAL
Code:
stack=2, locals=2, args_size=2
0: aload_0
1: aload_1
2: invokedynamic #29, 0 // InvokeDynamic #0:equals:(Lrecords/SmallJava;Ljava/lang/Object;)Z
7: ireturn
...
BootstrapMethods:
0: #45 REF_invokeStatic java/lang/runtime/ObjectMethods.bootstrap:(Ljava/lang/invoke/MethodHandles$Lookup;Ljava/lang/String;Ljava/lang/invoke/TypeDescriptor;Ljava/lang/Class;Ljava/lang/String;[Ljava/lang/invoke/MethodHandle;)Ljava/lang/Object;
Method arguments:
#8 records/SmallJava
#52 i;s;l
#54 REF_getField records/SmallJava.i:I
#55 REF_getField records/SmallJava.s:Ljava/lang/String;
#56 REF_getField records/SmallJava.l:J

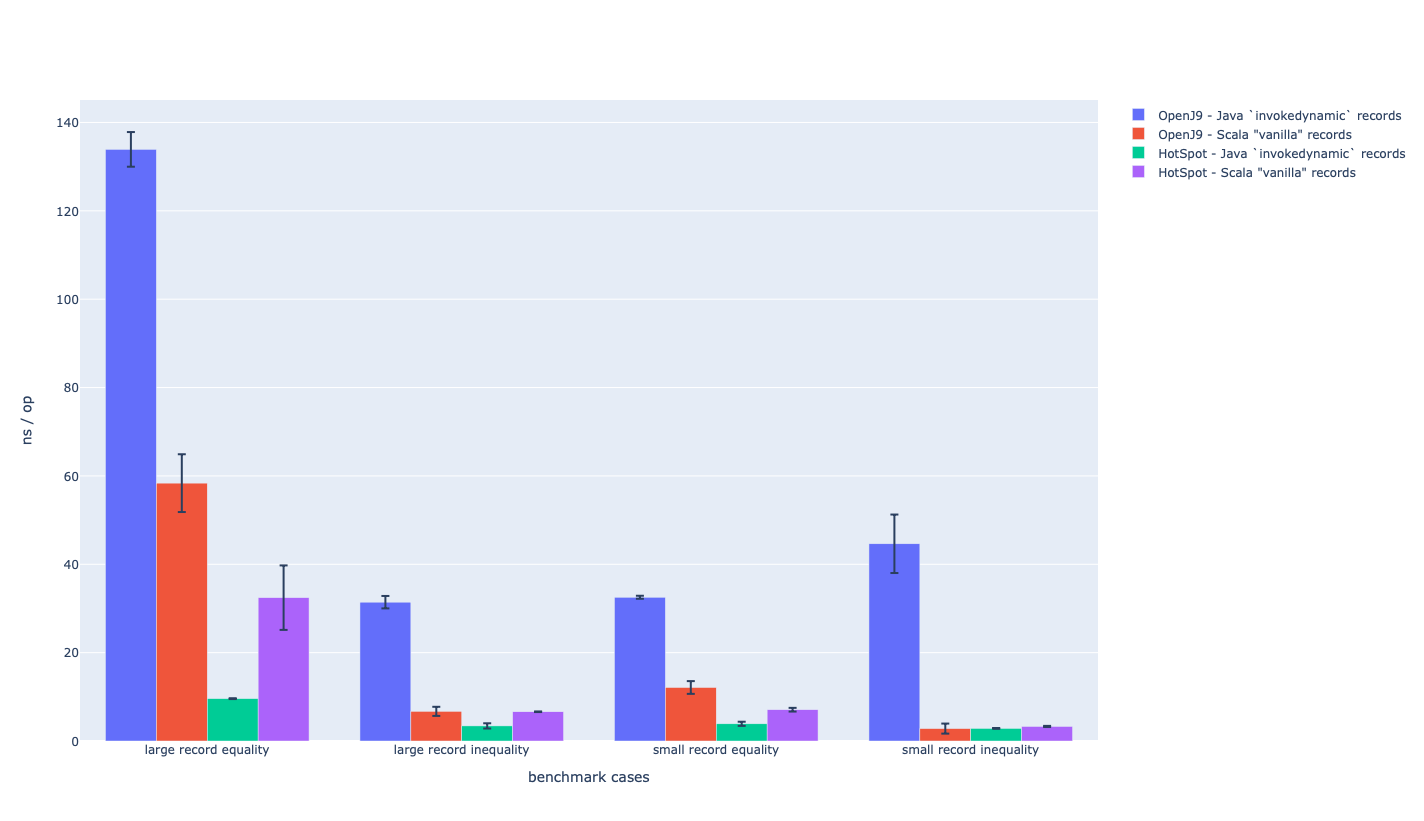

I ran this benchmark twice to compare HotSpot OpenJDK 16 and Eclipse OpenJ9. Although disappointing, it isn't too surprising that OpenJ9 isn't faster (after all, I don't think this benchmark exercises any of OpenJ9's strengths). What is surprising is that invokedynamic on OpenJ9 is abysmal and invokedynamic on HotSpot is the best.
| HotSpot "vanilla" | HotSpot invokedynamic |
OpenJ9 "vanilla" | OpenJ9 invokedynamic |
|
|---|---|---|---|---|
| Large record equality | 32.445 ± 7.299 | 9.588 ± 0.097 | 58.364 ± 6.539 | 133.907 ± 3.924 |
| Large record inequality | 6.622 ± 0.071 | 3.418 ± 0.592 | 6.710 ± 1.031 | 31.420 ± 1.408 |
| Small record equality | 7.083 ± 0.419 | 3.892 ± 0.470 | 12.112 ± 1.443 | 32.535 ± 0.341 |
| Small record inequality | 3.294 ± 0.131 | 2.847 ± 0.061 | 2.808 ± 1.137 | 44.639 ± 6.619 |
OpenJ9 (installed with brew install adoptopenjdk16-openj9)
$ java -version
openjdk version "16" 2021-03-16
OpenJDK Runtime Environment AdoptOpenJDK (build 16+36)
Eclipse OpenJ9 VM AdoptOpenJDK (build openj9-0.25.0, JRE 16 Mac OS X amd64-64-Bit Compressed References 20210311_66 (JIT enabled, AOT enabled)
OpenJ9 - 022d65424
OMR - 09514431e
JCL - 0c11227a21a based on jdk-16+36)
HotSpot OpenJDK 16 (installed with brew install adoptopenjdk16)
$ java -version
openjdk version "16" 2021-03-16
OpenJDK Runtime Environment AdoptOpenJDK (build 16+36)
OpenJDK 64-Bit Server VM AdoptOpenJDK (build 16+36, mixed mode, sharing)
