samd51: DAC: Make clock usage more like Arduino core

[jepler]

This improves the behavior around #1992. The samples stay in sync now, though full scale changes still behave erratically.

Testing performed: On a Metro M4, with both analog channels going to a scope, I looked for synchronization and waveform shape.

Original reproducer: Stays synchronized.

#1992 (comment) reproducer: Stays synchronized and plays at the nominal 100kHz sample rate. However, waveform peaks are "regularly irregular", with every other high peak being truncated, usually.

A difference I'm aware of between this and Arduino's M4 core is that Arduino uses CCTRL_CC100K; however, doing this makes CP worse, so I went with the more "correct" CC12M setting.

Closes: #1992

[jepler]

Obviously I feel quite uneasy about this and wish I had more answers.

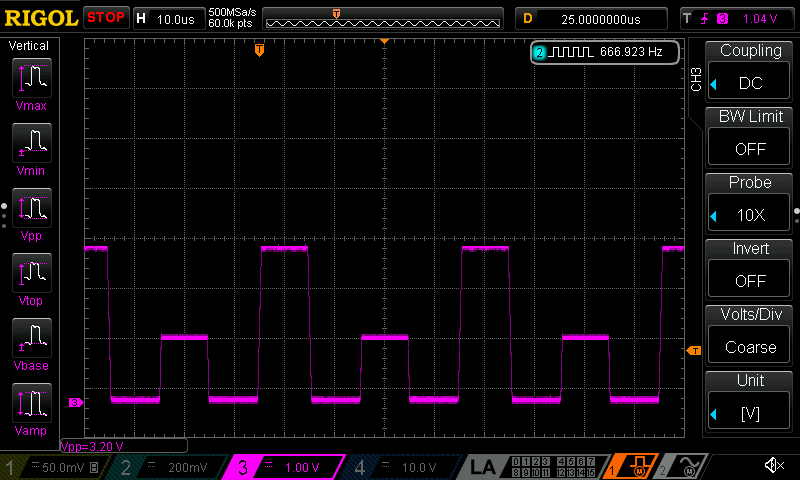

Here's how the DAC looks with the sequence [0,65535] repeated forever:

Something's obviously still quite wrong with how the DAC or its clocking is set up.

[ladyada]

lol - out of curiosity, do you have a 'mimic' set up with arduino for this kind of output? what if you do [0, 1000] is it the 65535 thats messing it up?

[jepler]

@ladyada The screenshot above is from a CircuitPython program with my patch:

import board
import audioio
import array
import time

X = 4000
Y = 65535
data = array.array('H', [0,0,Y,X])
sample = audioio.RawSample(data, sample_rate=100 * 1000, channel_count=2)
a = audioio.AudioOut(board.A0, right_channel=board.A1)
a.play(sample, loop=True)

while 1: time.sleep(1)

My arduino program:

void setup() {
  pinMode(A0, OUTPUT);
}

void loop() {
  analogWrite(A0, 0);
  analogWrite(A0, 4059);
}

[ladyada]

🤷‍♀ i just play 20khz max audio thru this thing :D

[jepler]

The rise/fall rate seems to have to do with the CCTRL register:

Bits 3:2 – CCTRL[1:0] Current Control
This field defines the current in output buffer according to conversion rate.

One thing I notice is that when doing analogWrite, Arduino does this:

                                while ( !DAC->STATUS.bit.READY0 );

                                while (DAC->SYNCBUSY.bit.DATA0);
                                DAC->DATA[0].reg = value;  // DAC on 10 bits.

in CP AnalogOut, we're not looking at READY0 or DATA0. Ardino also doesn't use LEFTADJ but that doesn't seem to be the source of the problem.

[jepler]

@ladyada I think 20kHz sample rate audio works pretty good, especially if it's also mono. Stereo, very high sample rates, and unusual waveforms are where the problems @kevinjwalters reports seem to enter the picture.

[tannewt]

Thanks! Have you done a diff of the DAC's registers between CircuitPython and Arduino? I'd be curious if it shows anything.

[jepler]

@tannewt don't merge yet, I think this change may have adversely affected sqpi flash I/O and need to do further checking to exclude that theory. Yes, I do have a diff of DAC registers but it's not handy. Ping me again if I don't attach it.

[tannewt]

Kk, looks like it didn't run the checks either...

not ready

[jepler]

Huh I wonder why it didn't run checks.

[dhalbert]

If you merge from upstream and push, it will run the checks. That has worked for me.

[tannewt]

Where are we at on this?

[jepler]

Needs more testing on my part, I had inconclusive results

[jepler]

I am closing this in favor of a new PR to be issued shortly.
