Would be cool if we had a wrapper function to make heatmap dendrograms like this:

[cpsievert]

Do you by chance have the code for that one? It looks like plotly almost translates this more basic example, but not quite.

library(ggplot2)
library(ggdendro)
hc <- hclust(dist(USArrests), "ave")
hcdata <- dendro_data(hc, type="rectangle")
p <- ggplot() +
    geom_segment(data=segment(hcdata), aes(x=x, y=y, xend=xend, yend=yend)) +
    geom_text(data=label(hcdata), aes(x=x, y=y, label=label, hjust=0), size=3) +
    coord_flip() +

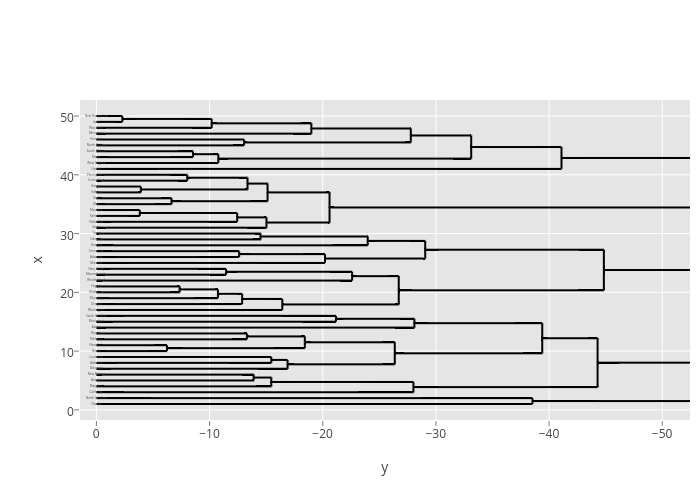

    scale_y_reverse(expand=c(0.2, 0))

versus

[jackparmer]

Oh yeah, sorry! The code is from this SO issue:

http://stackoverflow.com/questions/6673162/reproducing-lattice-dendrogram-graph-with-ggplot2

One issue with the conversion is it doesn't look like ggplotly supports R grids to Plotly subplots (#220)

[cpsievert]

When we merge #226, it should close this issue (thanks to subplot()).

library(ggplot2)
library(ggdendro)

#dendogram data
x <- as.matrix(scale(mtcars))
dd.col <- as.dendrogram(hclust(dist(x)))
dd.row <- as.dendrogram(hclust(dist(t(x))))
dx <- dendro_data(dd.row)
dy <- dendro_data(dd.col)

# helper function for creating dendograms
ggdend <- function(df) {
  ggplot() +
    geom_segment(data = df, aes(x=x, y=y, xend=xend, yend=yend)) +
    labs(x = "", y = "") + theme_minimal() +
    theme(axis.text = element_blank(), axis.ticks = element_blank(),
          panel.grid = element_blank())
}

# x/y dendograms
px <- ggdend(dx$segments)
py <- ggdend(dy$segments) + coord_flip()

# heatmap
col.ord <- order.dendrogram(dd.col)
row.ord <- order.dendrogram(dd.row)
xx <- scale(mtcars)[col.ord, row.ord]
xx_names <- attr(xx, "dimnames")
df <- as.data.frame(xx)
colnames(df) <- xx_names[[2]]
df$car <- xx_names[[1]]
df$car <- with(df, factor(car, levels=car, ordered=TRUE))
mdf <- reshape2::melt(df, id.vars="car")
p <- ggplot(mdf, aes(x = variable, y = car)) + geom_tile(aes(fill = value))


# hide axis ticks and grid lines
eaxis <- list(
  showticklabels = FALSE,
  showgrid = FALSE,
  zeroline = FALSE
)

p_empty <- plot_ly() %>%
  # note that margin applies to entire plot, so we can
  # add it here to make tick labels more readable
  layout(margin = list(l = 200),
         xaxis = eaxis,
         yaxis = eaxis)

subplot(px, p_empty, p, py, nrows = 2, margin = 0.01)

[jackparmer]

Carson's the man.

On Tuesday, July 28, 2015, Carson notifications@github.com wrote:

When we merge #226 #226, it
should close this issue (thanks to subplot()).

library(ggplot2)
library(ggdendro)
#dendogram datax <- as.matrix(scale(mtcars))dd.col <- as.dendrogram(hclust(dist(x)))dd.row <- as.dendrogram(hclust(dist(t(x))))dx <- dendro_data(dd.row)dy <- dendro_data(dd.col)

helper function for creating dendogramsggdend <- function(df) {

ggplot() +
geom_segment(data = df, aes(x=x, y=y, xend=xend, yend=yend)) +
labs(x = "", y = "") + theme_minimal() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid = element_blank())
}

x/y dendogramspx <- ggdend(dx$segments)py <- ggdend(dy$segments) + coord_flip()

heatmapcol.ord <- order.dendrogram(dd.col)row.ord <- order.dendrogram(dd.row)xx <- scale(mtcars)[col.ord, row.ord]xx_names <- attr(xx, "dimnames")df <- as.data.frame(xx)

colnames(df) <- xx_names[[2]]df$car <- xx_names[[1]]df$car <- with(df, factor(car, levels=car, ordered=TRUE))mdf <- reshape2::melt(df, id.vars="car")p <- ggplot(mdf, aes(x = variable, y = car)) + geom_tile(aes(fill = value))

hide axis ticks and grid lineseaxis <- list(

showticklabels = FALSE,
showgrid = FALSE
)
p_empty <- plot_ly() %>%

note that margin applies to entire plot, so we may

add it here to make tick labels more readable

layout(margin = list(l = 200),
xaxis = eaxis,
yaxis = eaxis)

subplot(px, p_empty, p, py, nrows = 2, margin = 0.01)

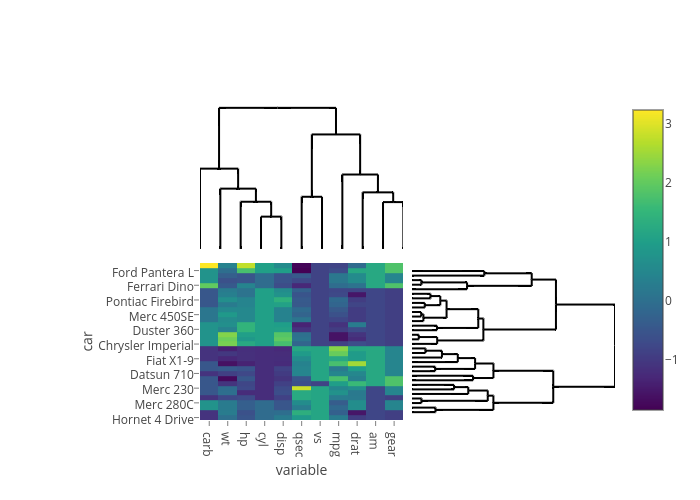

[image: https://plot.ly/~agvd/550]
https://camo.githubusercontent.com/c7d99feea916547f38edd6e0e62826fa1558f8a2/68747470733a2f2f706c6f742e6c792f253745616776642f3535302e706e67

—
Reply to this email directly or view it on GitHub
#219 (comment).

[cpsievert]

@jackparmer perhaps we should put this example somewhere so it's more visible? Any ideas where?

[chriddyp]

sweet! I'll add it to https://github.com/plotly/documentation/tree/source

[chriddyp]

Added to docs: plotly/documentation@42332d6, https://plot.ly/ggplot2/ggdendro-dendrograms/
