Description
Bug report
Bug summary

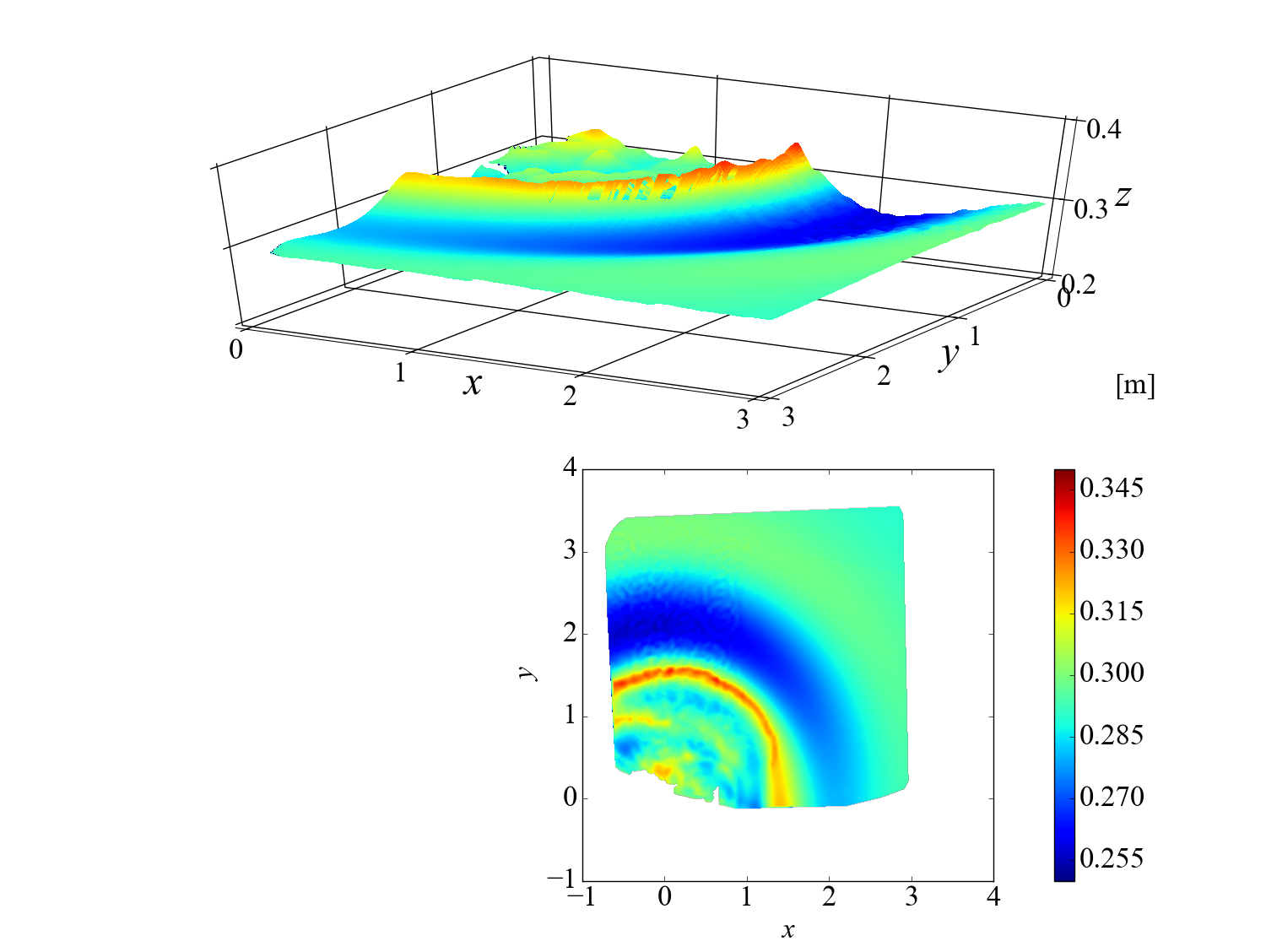

A grid is interpolated with scipy's griddata() and contains values and NaNs. However, when the grid is plotted with mplot3d's plot_surface() there are gaps in the surface (see upper plot). The lower the view height, the more of such gaps are rendered. When the grid is plotted in 2D with imshow() there are no gaps (see lower plot).
Code for reproduction
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
Z = np.loadtxt('data.txt')
X = np.linspace(0,3,301)
Y = np.linspace(0,3,301)
X = np.array([X,]*(301)).transpose()
Y = np.array([Y,]*(301))
fig = plt.figure(figsize=(15,15), dpi=100)
ax = fig.add_subplot(2, 1, 1, projection='3d')
ax.view_init(40,300)
surf = ax.plot_surface(X, Y, Z, cmap='jet', rstride=1, cstride=1, antialiased=False, shade=False, alpha=1.0, linewidth=0, vmin=0.25, vmax=0.35);
ax.invert_yaxis()
ax.dist = 11
ax = fig.add_subplot(2, 1, 2)
plt.imshow(Z, cmap='jet', vmin=0.25, vmax=0.35, origin='lower');
plt.show()Actual outcome
Close-up:
Expected outcome
No holes in the 3D surface plot.
Matplotlib version
Matplotlib 1.3.0 to 1.5.3 (WinPython 3.3.2.3 to 3.5.2.3), but it was also reproduced up to Matplotlib 2.0: http://stackoverflow.com/questions/41268550/matplotlib-3d-surface-gaps-holes-in-surface
