2000ms delay serving any SPA files in development environment

[penfold]

Describe the bug

In the development environment, I'm seeing a 2000ms latency when serving any files from the SPA.

To Reproduce

Running Angular as a SPA in .net core 3.1 (new project).

[javiercn]

@penfold thanks for contacting us.

That is probably normal and expected if the application is running in development, as React/Angular files need to be compiled by the dev-server.

@SteveSandersonMS do you have any further thought?

[mkArtakMSFT]

@penfold can you please confirm that this delay happens only on the first request after modifying code or starting the server?

[penfold]

@mkArtakMSFT It is for every file requested from the SPA via the development proxy process. It is for all file types including image resources.

Watching the debug output the typescript compilation is not the cause. I can see the expected extended response time for the first request during the building of the Angular project.

The API controller endpoints do not show the delay.

I'm just not sure how to start debugging this type of issue.

Thanks,
Paul

[penfold]

I've run the SPA without using VS - just via 'ng s'. There is no delay when loading in this scenario. This is what is pointing me to Visual Studio 16.4 and the SPA Service Extensions (v3.1.0).

[javiercn]

@penfold Could you try and collect a trace with https://docs.microsoft.com/en-us/dotnet/core/diagnostics/dotnet-trace?

[penfold]

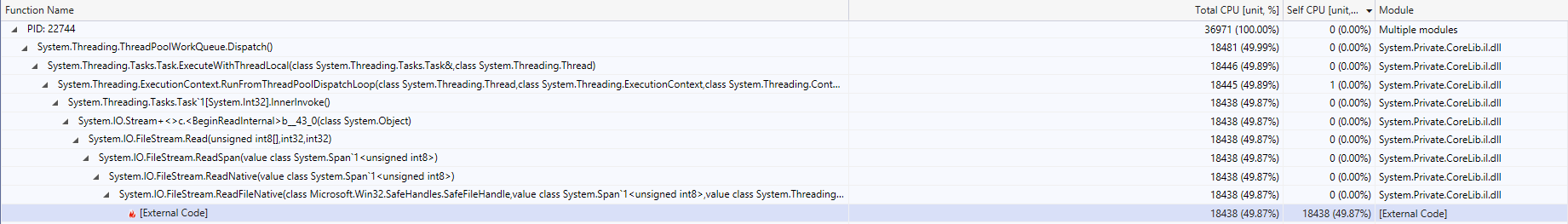

@javiercn Here is a trace. A number of downloads occur in time frame of the trace.

To me it looks like the delay is in unmanaged code - is this the interaction with Node?

trace.zip

Thanks,
Paul

[javiercn]

@penfold thanks for the trace.

I believe you are using application insights in your app during development and that seems to be where the app is spending most of the time?

Could you disable app insights and check if that solves the issue?

[penfold]

@javiercn I've removed AppInsights and set the logging for 'Microsoft' to none. This looks like it has removed a lot of noise in the tracing (see new trace). Still seeing the 2 second delays.

trace_v2.zip

[javiercn]

I believe this new trace still shows app insights is enabled

[penfold]

Sorry, wrong trace file.

trace3.zip

[javiercn]

From what I can tell, this is external (unmanaged code) code

Do you get a 2 second delay on the first request for the file or on every single one of them.
Could you also collect the logs alongside the server trace?

Can you also make sure to include the sever logs at debug level? See https://docs.microsoft.com/en-us/aspnet/core/fundamentals/logging/?view=aspnetcore-3.1#event-source-provider on how to do so.

[penfold]

I'm not totally sure what I'm doing here...

I've added the following:

    public static IWebHostBuilder CreateWebHostBuilder(string[] args) =>
            WebHost.CreateDefaultBuilder(args)
                .ConfigureLogging((hostingContext, logging) =>
                {
                    logging.AddFilter("XXXXX", LogLevel.Debug);
                    logging.AddEventSourceLogger();
                })
                .UseStartup<Startup>();
    }

I'm not sure that to put as XXXX for 'server logs'?

Also, do I need to specify a provider on the trace commandline?

[penfold]

It is every file...

[javiercn]

 public static IWebHostBuilder CreateWebHostBuilder(string[] args) =>
            WebHost.CreateDefaultBuilder(args)
                .ConfigureLogging((hostingContext, logging) =>
                {
                    logging.AddFilter("XXXXX", LogLevel.Debug);
                    logging.AddEventSourceLogger();
                })
                .UseStartup<Startup>();
    }

It seems like you are using the old webhost instead of the new generic host. I thought we were looking at an out of the box application, am I wrong here? Could you check with a brand new 3.1 app and see if it happens there? That way we can look what's different.

The event source logger should be enabled by default in the out of the box templates (it's enabled by default on the webhost).

You need to pass --providers Microsoft-Extensions-Logging to capture the logs in the trace

[penfold]

I've updated my project to use the generic host build - it still shows the same issue.

I have created a vanilla .net core 3.1 SPA and retested. This shows the issue. Here are the logs:

trace_4.zip

This is the browser network details:

Could this be down to something external that is affecting file access?

[javiercn]

I've looked at the new trace.

I'm not sure if we are capturing the Debug logs, but I can't see any logging related to the SPA apps. I'm not sure how to dig deeper into this. I'll ask a couple of folks.

@SteveSandersonMS do we have any logging on SPAs?

@davidfowl Is there a better way to do an investigation than the trace from dotnet trace?

[SteveSandersonMS]

@javiercn Nothing specific. The proxying code is at https://github.com/aspnet/AspNetCore/blob/master/src/Middleware/SpaServices.Extensions/src/Proxying/SpaProxy.cs.

[cpboyd]

Just to add, I'm having crazy delays with the proxy too...

Especially with a bigger app that I've just converted from AngularJS to Angular 9.

Often the .NET proxy server will just throw a timeout, while I can instantly access the Angular server by just visiting the port that it was launched on.

[cpboyd]

I just noticed that my vendor.js is 8.3MB in development.

Is there perhaps some issue with the proxy limiting transfers?

I know that Kestrel on Linux had some limitation in place.

[cpboyd]

I created #17925 regarding error messaging... But some tips from stuff I've listed there:
Try ng serve from the client app folder to actually get the error message.

.NET never lists errors related to node_modules (maybe @angular reports those differently).

Compilation errors will appear in the .NET command prompt, but they still result in a generic "timeout" exception from .NET's HTTP response.

[penfold]

It looks like #18062 may be related.

[mkArtakMSFT]

We've moved this issue to the Backlog milestone. This means that it is not going to be worked on for the coming release. We will reassess the backlog following the current release and consider this item at that time. To learn more about our issue management process and to have better expectation regarding different types of issues you can read our Triage Process.

[keesspoelstra]

A temporary fix when running into this is to change the start script of the package.json of the app under development to:
"start": "ng serve --host ::1",
this will force the ng server to listen on the IPV6 localhost address and allow fast access. #18062 will also be solved by this workaround.

This might cause some side effects when moving to machines which only have ipv4 or use a different resolve order.
It seems impossible to start ng serve with two listening addresses (ipv4 and ipv6)
YMMV

[sscholle]

@penfold the discussion on this thread offers a good solution #18062
it seems to be [node]spa server/networking related

[javiercn]

This is a dupe of #22769

We recommend following the approach described there to avoid this issue
